Automatic Shaft Balancing Machine
Automatic shaft balancing machine is designed for balancing operations of the automotive and industrial shafts inside the balancing machine capacity, with the automatic spot welding units. SYM 6000 is suitable for serial shaft production. Automatic loading / unloading is an option, shaft clamping, balance measurement and balance correction is automatic.
- Servo control
- High sensitivity
OPTIONAL ACCESSORIES
- Pneumatic clamping
- Automatic loading / unloading station - ROBOT
- Automatic spot welding unit.

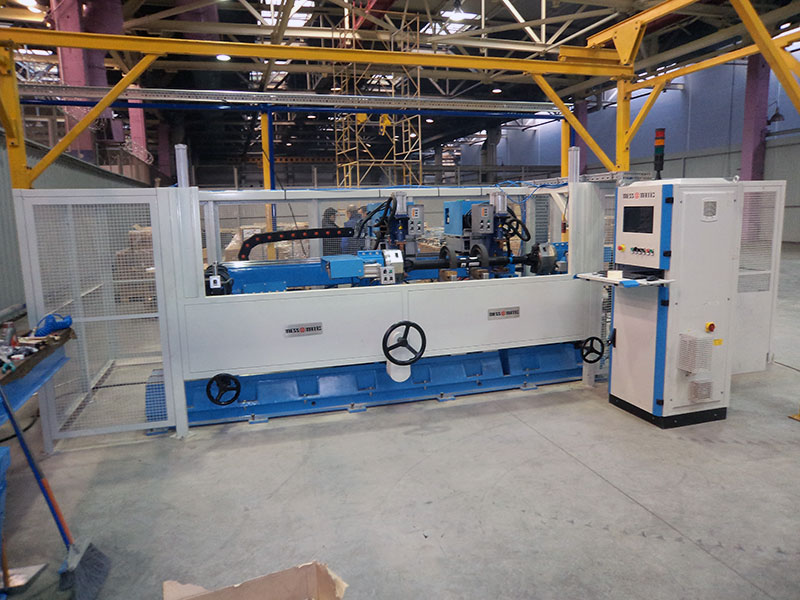

Photos
Technical Information
|
MODEL |
Unit |
SYM 6000 AUTOMATIC SHAFT BALANCING MACHINE |
|---|---|---|
|
Main Motor |
Servo |
|
|
Motor Power |
kW |
|
|
Loading / Unloading |
Automatic / Manual |
|
|
Spot Welding Unit |
Optional |
|
|
Marking Unit |
|
Optional |
|
Max. Shaft Weight |
Kg |
150 |
|
Max. Shaft Tube Diameter |
mm |
80 - 350 |
|
Shaft Length |
mm |
250 - 3000 |
|
Balancing RPM |
rpm |
3000 |
|
Sensitivity |
gmm |
|
|
Min. distance between correction planes |
mm |
- |
|
Air |
bar |
8 |
|
Cycle Time |
s |
30 |
Machine Dimensions
