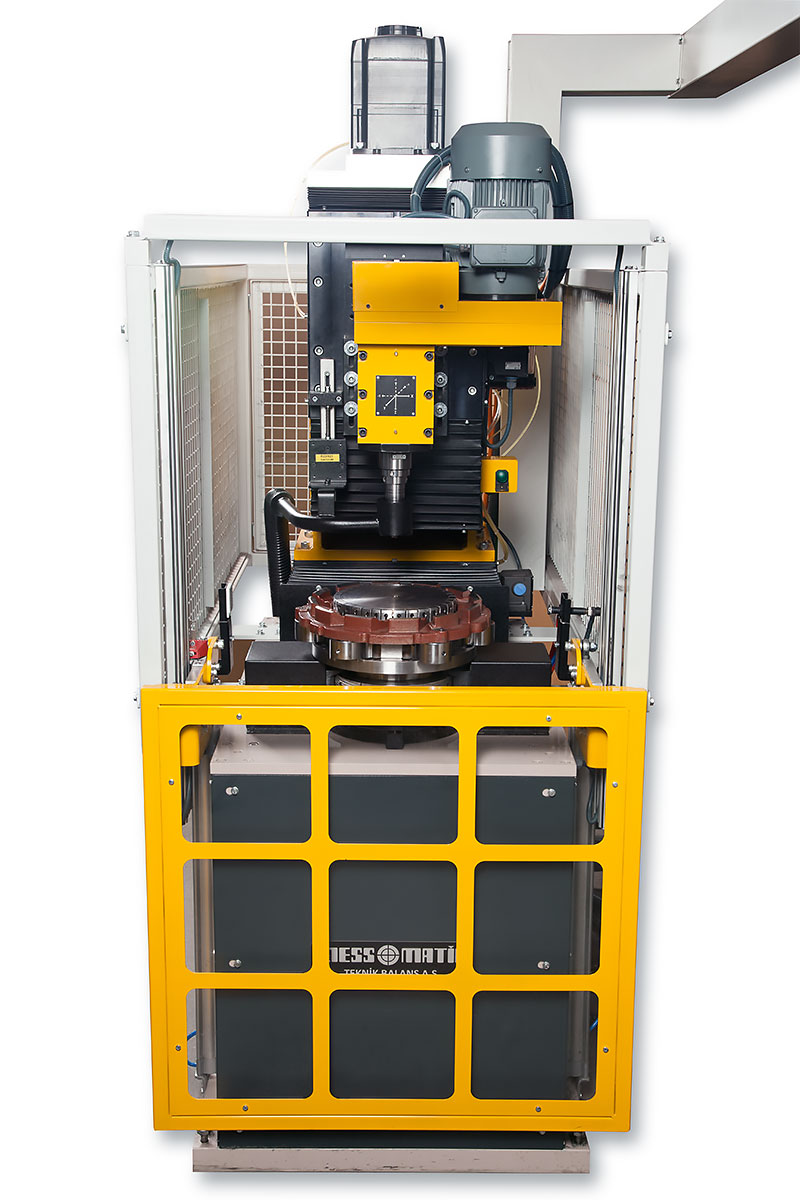

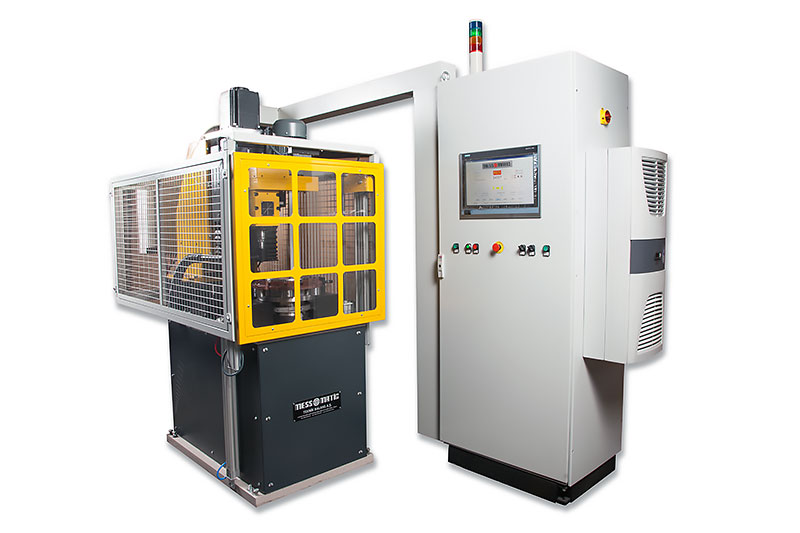

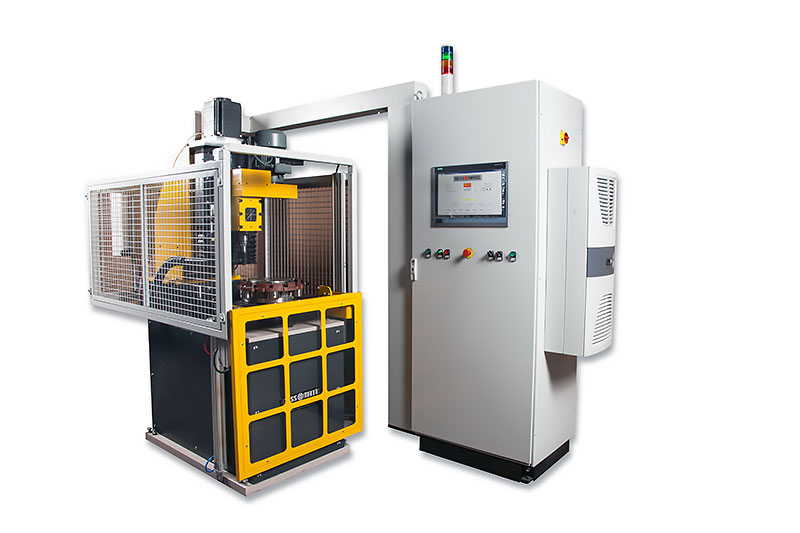

Automatic Vertical Wheel Balancing Machines

ODM Series automatic vertical balancing machines are equipped with automatic drilling unit and designed for balancing of automotive  brake  drums,  flywheels,  pulleys,  clutch  components etc. These machines are suitable for serial production, and serving the customers fast, practical balancing solutions. Loading / unloading of the part can be done by the operator or by a robot system, automatic robot system is optional. The clamping of the part, unbalance  measurement  and  balance  correction  by  drilling unit is done automatically.

  • Servo controlled
  • No operator need
  • Fast operation
  • No mistake operation
  • High balancing accuracy

    OPTIONAL  ACCESSORIES

  • Automatic Loading / Unloading Unit – Gantry Loader Robot

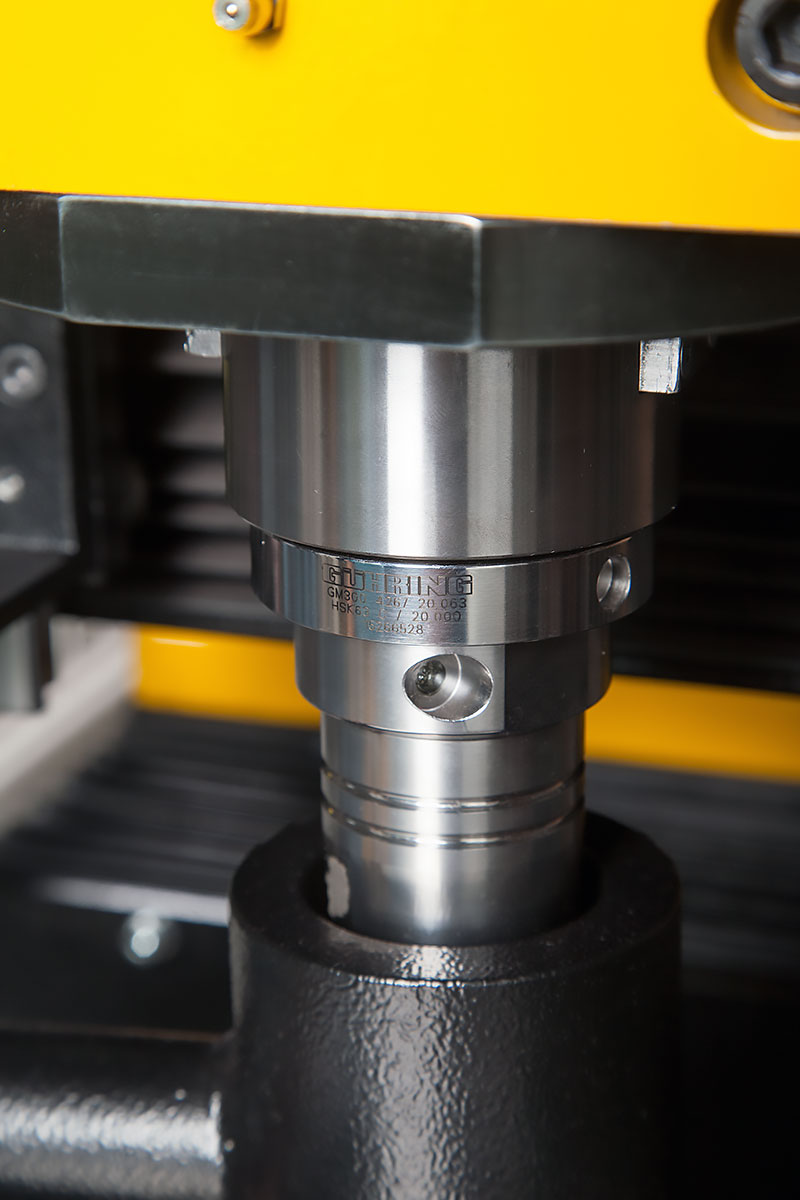

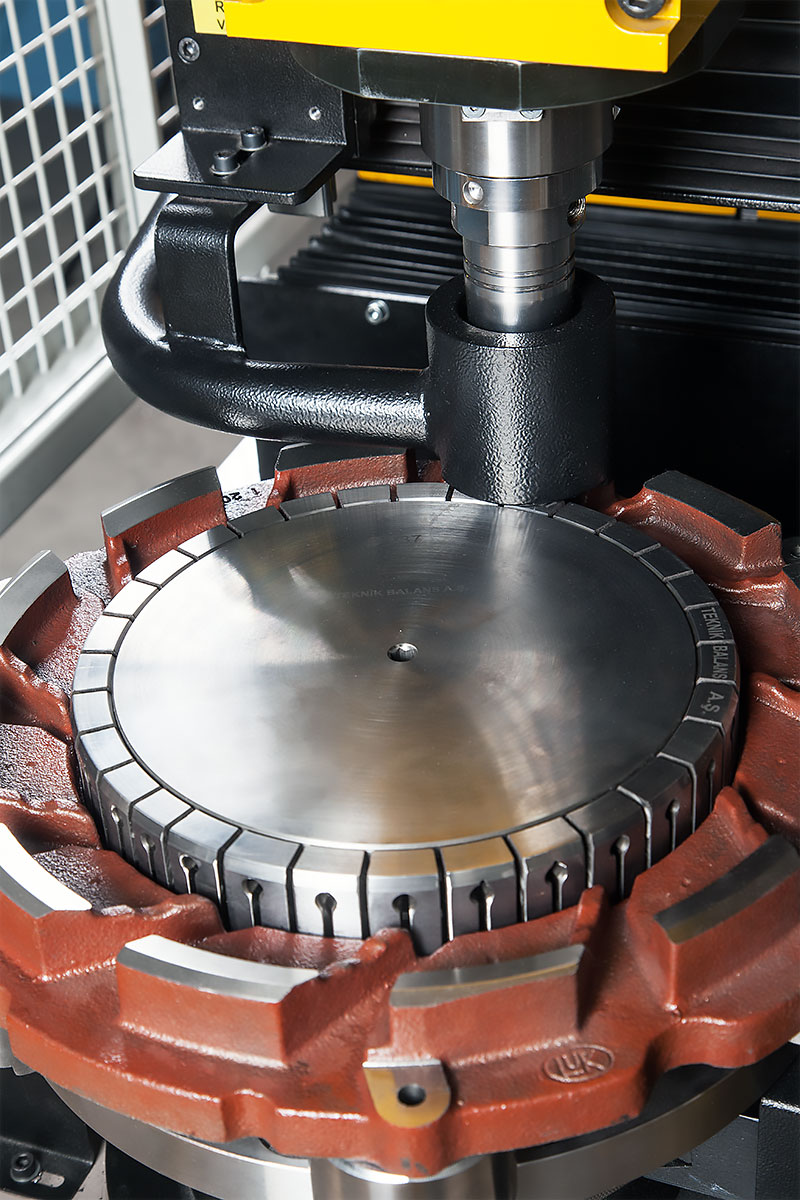

  • Automatic Drilling Unit
  • Entrance / Exit Conveyor System – Automation


Technical Information

TechnicialSpecifications                       Birim / Unit

ODM 21

ODM 101

Main Motor


Automatic Loading - Unloading System


Drilling Unit Type

Vertical & Horizontal

Drill Variation

Ø20 / Ø32 / Ø45

Drilling Unit Axis Control

Automatic - Servo



MaximumRotorWeight                           (Kg)



RotorDiameter                                                             (mm)

200 - 350

200 - 700

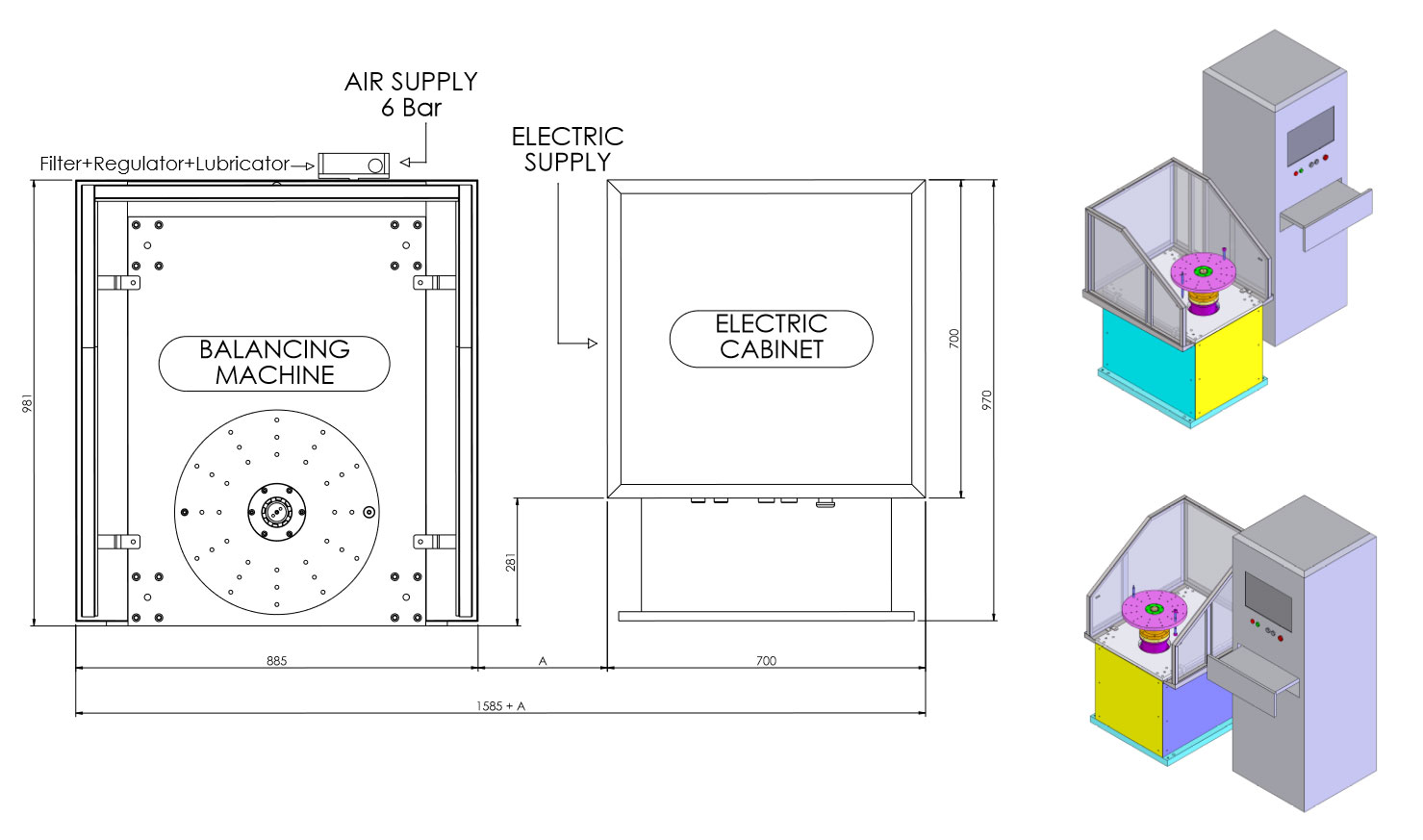

Machine Dimensions

Machine Dimensions
Machine Dimensions
